Brand
JET
Amperage Rating
18 A
Base Dimensions
13-3/4 x 22-3/4 in
Chuck Size
3/4 in
Column Diameter
3-3/8 in
Dimensions
67 in H x 33-1/2 in W x 18-1/2 in D
Horsepower
1.5 hp
Number of Spindle Speeds
12
Spindle Speed
150 to 4200 rpm
Spindle Taper
MT-3
Spindle Travel
4-5/8 in
Spindle to Column Distance
10 in
Spindle to Table Distance
29-1/8 in
Swing
20 in
Table Load Capacity
80 lb
Table Size
18-1/2 in L x 16 in W
Table Tilt
45 deg
Voltage Rating
115/230 V AC
Long Description

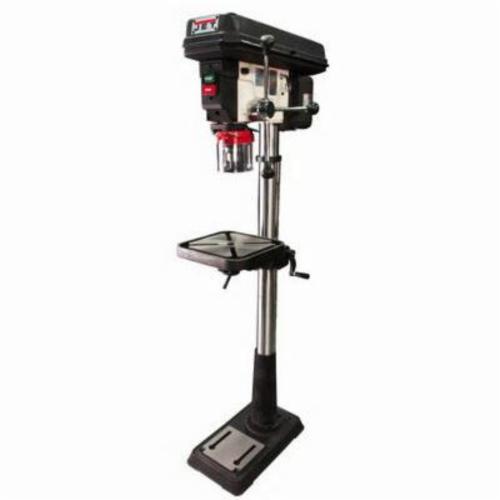

JET, JT9-354170, Floor Drill Press, 3/4 in Chuck, 20 in Swing, MT-3 Spindle Taper, 4-5/8 in Spindle Travel, 150 to 4200 rpm Spindle Speed, 12 Spindle Speed, 29-1/8 in Spindle to Table Distance, 10 in Spindle to Column Distance, 18-1/2 in L x 16 in W Table, 80 lb Table Load, 45 deg Table Tilt, 13-3/4 x 22-3/4 in Base, 3-3/8 in Diameter Column, 1.5 hp, 115/230 VAC, 18 A, 67 in H x 33-1/2 in W x 18-1/2 in D Dimensions
